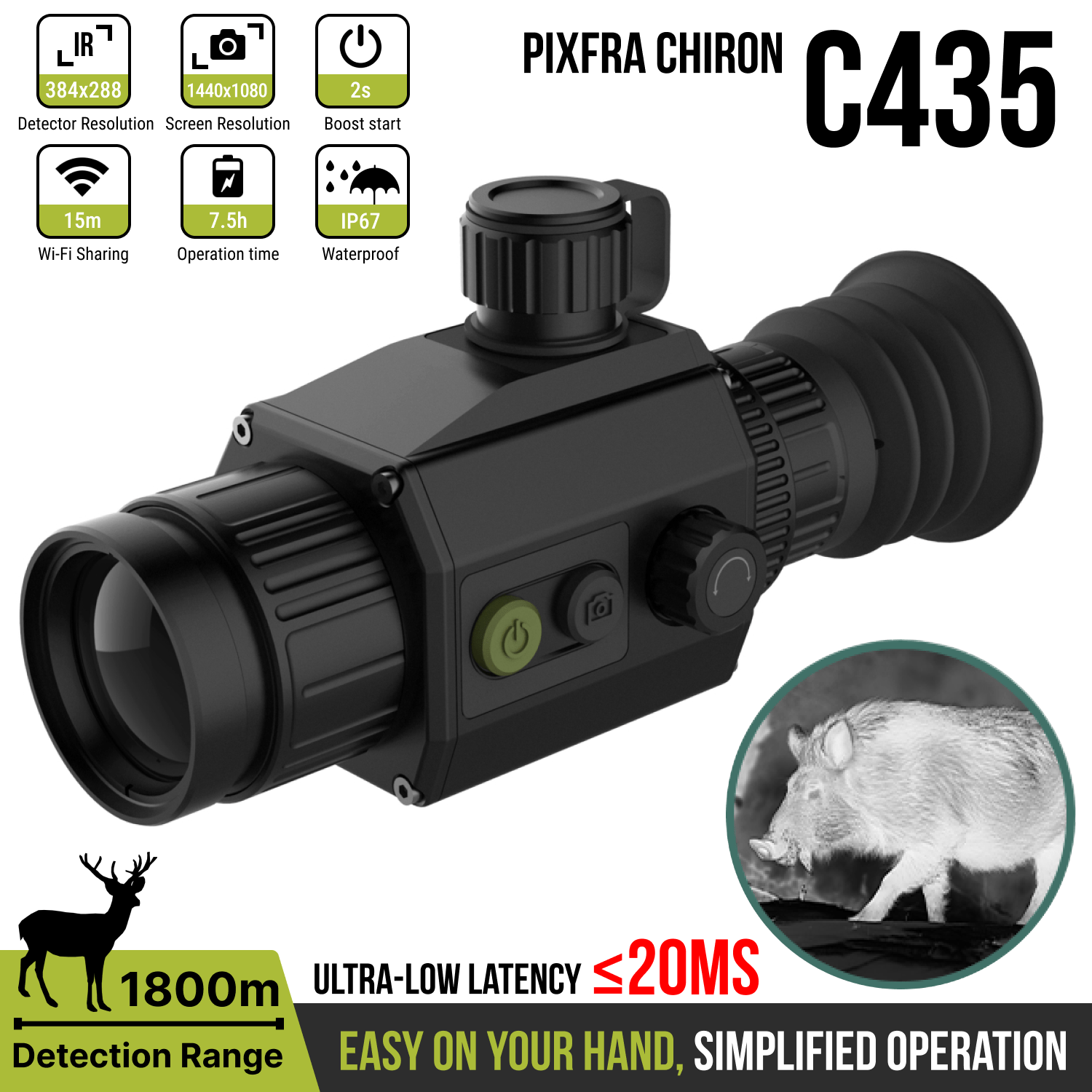

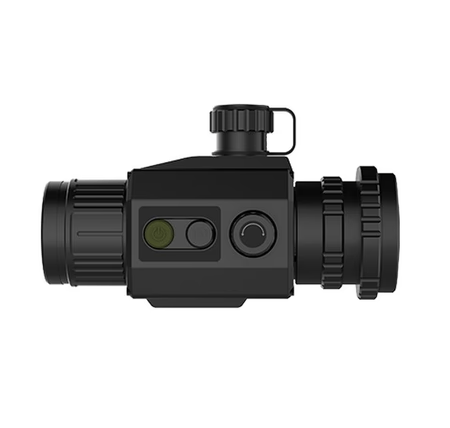

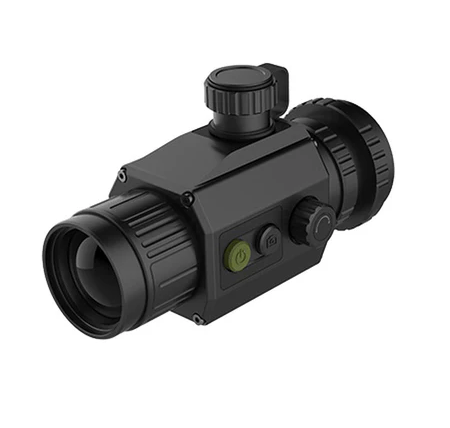

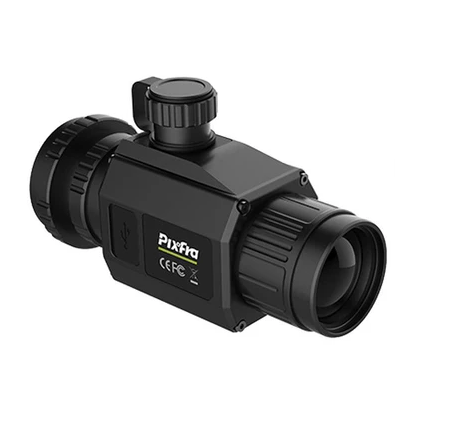

Pixfra Chiron C435 Thermal Imaging Scope
Overview
The Pixfra Chiron C435 Thermal Imaging Scope is a high-performance thermal imaging device designed for a wide range of applications including surveillance, hunting, and search and rescue operations. It combines advanced technology with user-friendly features to deliver exceptional thermal imaging capabilities.
Key Features
High-Resolution Thermal Sensor: Equipped with a 384×288 resolution and a 12µm pixel pitch thermal sensor, providing clear and detailed thermal images. The device boasts a sensitivity of <30mK NETD, making it ideal for detecting even the smallest temperature differences.
Powerful Lens: The 35mm f/1.0 objective lens offers a wide detection range of up to 1800 meters, suitable for long-distance observations.
High-Quality Display: Features a 1440×1080, 0.41-inch OLED display, ensuring sharp and smooth image presentation.
Digital Zoom: Provides 1x, 2x, 4x, and 8x digital zoom, allowing for closer inspection of distant objects.
Multiple Color Palettes: Includes six selectable color palettes (White Hot, Black Hot, Iron Red, Sepia, Green Hot, Alarm) to suit various viewing conditions and enhance visibility.
Built-In Wi-Fi: Enables connectivity with the Pixfra app for live streaming and remote operation via smart devices.
Video and Image Recording: Supports video recording and still image capture with built-in 16GB storage, ensuring ample space for recording sessions.
Stadiametric Rangefinder: Allows for accurate distance measurement between the user and observed objects, improving situational awareness.
Recoil-Activated Recording (RAR): Automatically records key moments when the device detects recoil, ensuring no important event is missed.
Rugged and Weatherproof: IP67 rated for dust and water resistance, operational in temperatures from -30°C to +55°C, ensuring reliability in harsh conditions.
Specifications
Resolution: 384×288
Lens Size: 35mm f/1.0
Field of View: 7.8° x 5.9°
Detection Range: Up to 1800 meters
Display: 1440×1080, 0.41-inch OLED
Digital Zoom: 1x, 2x, 4x, 8x
Battery Life: Up to 7.5 hours
Operating Temperature: -30°C to +55°C
Waterproof Rating: IP67
Dimensions: Compact and lightweight design for ease of use
Weight: Approximately 495 g
Applications
Surveillance: Ideal for security personnel needing reliable thermal imaging for monitoring activities in low visibility conditions.
Hunting: Helps hunters detect game in dense foliage or complete darkness.
Search and Rescue: Essential for rescuers to locate individuals in difficult terrains and adverse weather conditions.
In the Box
Pixfra Chiron C435 Thermal Imaging Scope
USB Type-C Charging Cable
Protective Carrying Case
User Manual
The Pixfra Chiron C435 is a versatile and powerful thermal imaging scope designed to meet the needs of various users. Its advanced features, rugged build, and high-resolution imaging make it an excellent choice for those seeking reliable performance in any situation.”
