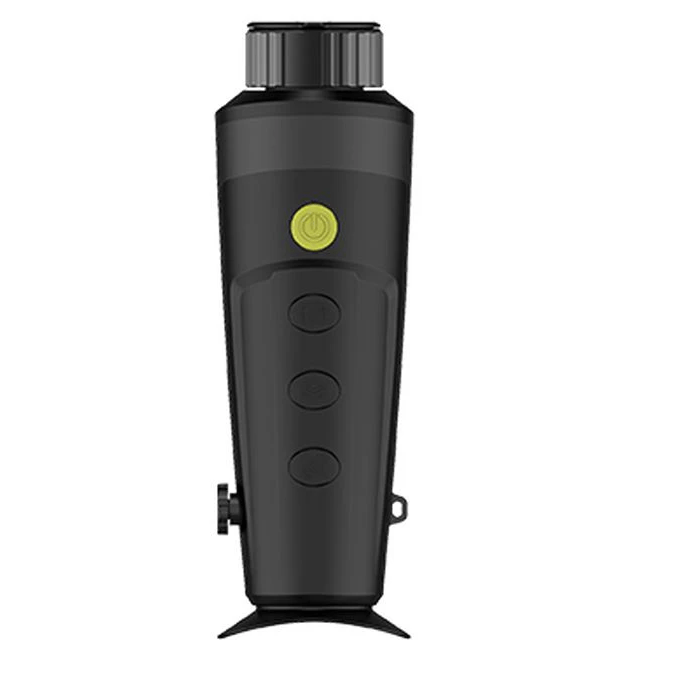

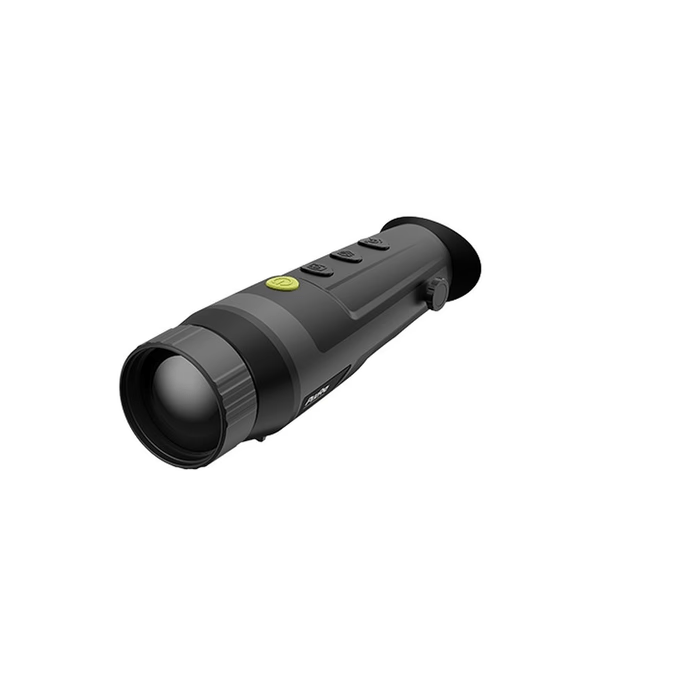

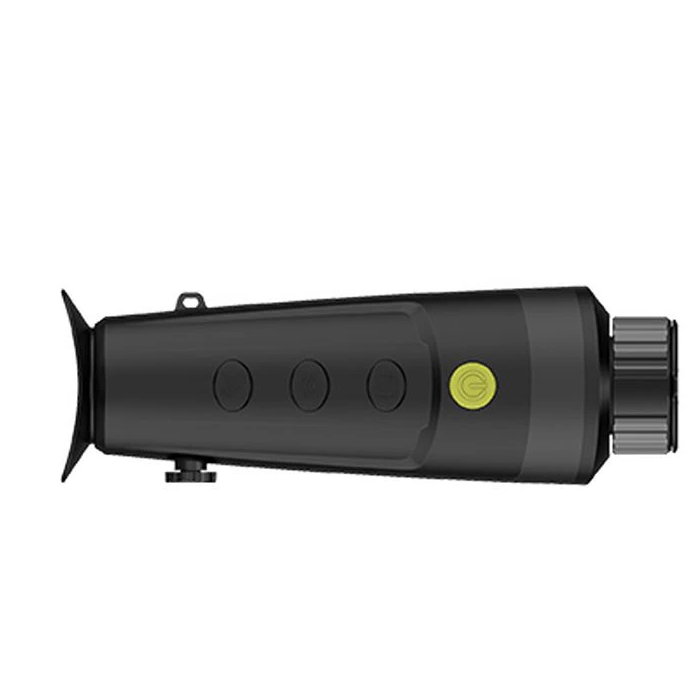

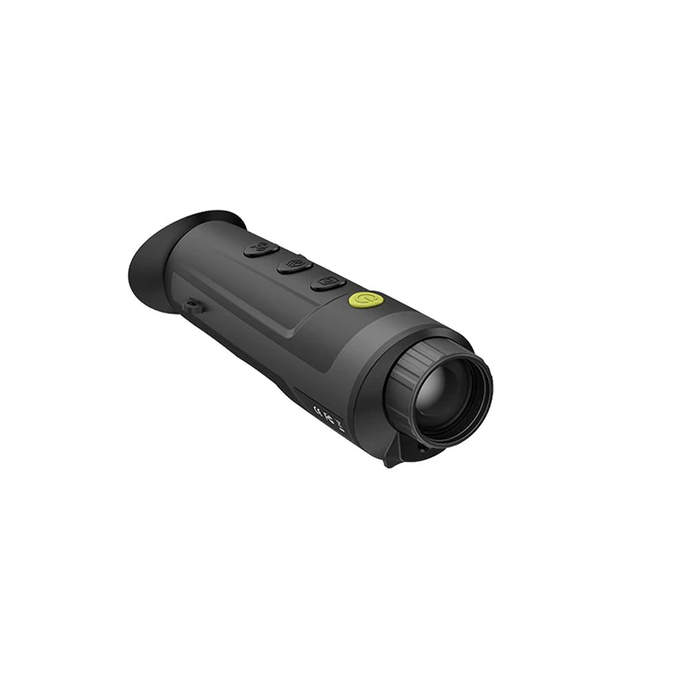

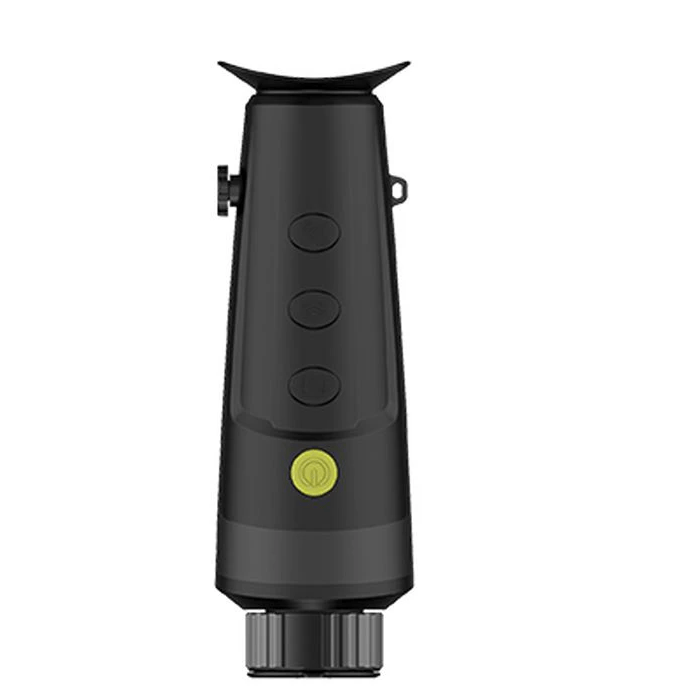

Pixfra Ranger R435 Thermal Imaging Monocular
Overview
The Pixfra Ranger R435 Thermal Imaging Monocular is a high-performance device designed for exceptional thermal imaging in various conditions. This monocular is ideal for outdoor enthusiasts, security professionals, and wildlife observers, offering advanced features and robust construction for reliable performance.
Key Features
High-Resolution Thermal Sensor: Equipped with a 384×288 resolution and a 12µm pixel pitch thermal sensor, the Ranger R435 delivers detailed and clear thermal images with a sensitivity of <30mK NETD.
Powerful Lens: The 35mm f/1.0 objective lens provides a wide field of view (17.4° x 14.0°) and enhances the detection range up to 1800 meters, making it suitable for long-range observations.
Display: Features a high-resolution 1440×1080, 0.41-inch OLED display for clear and detailed image presentation.
Digital Zoom: Offers 1x, 2x, 4x, and 8x digital zoom for closer inspection of distant objects.
Multiple Color Palettes: Includes six selectable color palettes (white hot, black hot, iron red, alarm, emerald, amber) to suit various viewing conditions.
Built-In Wi-Fi: Enables seamless connectivity with the Pixfra app for live streaming and group observations, supporting connections with up to four smart devices.
Video and Image Recording: Supports video recording and still image capture with built-in 32GB storage, allowing for extensive recording capacity.
Long Battery Life: Provides up to 7.5 hours of continuous use on a single charge with a rechargeable lithium battery and USB Type-C port for easy charging.
Rugged and Weatherproof: IP67 rated for dust and water resistance, operational in temperatures from -30°C to +50°C, ensuring durability in harsh conditions.
Additional Features
Stadiametric Rangefinder: Built-in range finding capabilities allow for accurate distance measurement between the user and the observed object.
Adjustable Diopter: Allows the device to be set to match the eyesight of different users for a clear and comfortable viewing experience.
Laser Pointer: Integrated laser pointer for pinpointing specific objects, which automatically disables after 10 seconds to protect the user’s eyes.
Proximity Sensor: Enhances user experience by automatically adjusting settings based on the user’s proximity to the device.
Applications
Wildlife Observation: Ideal for spotting and studying wildlife in complete darkness or through dense foliage.
Security and Surveillance: Enhances situational awareness for security operations, allowing for effective monitoring in low visibility conditions.
Outdoor Adventures: Perfect for hikers, campers, and explorers who need reliable thermal imaging to navigate and observe their surroundings at night.
Specifications
Resolution: 384×288
Lens Size: 35mm f/1.0
Field of View: 17.4° x 14.0°
Detection Range: Up to 1800 meters
Display: 1440×1080, 0.41-inch OLED
Digital Zoom: 1x, 2x, 4x, 8x
Battery Life: Up to 7.5 hours
Operating Temperature: -30°C to +50°C
Waterproof Rating: IP67
Dimensions: 199.8 mm x 64.7 mm x 69.6 mm
Weight: 400 g
In the Box
Pixfra Ranger R435 Thermal Imaging Monocular
USB Type-C Charging Cable
Protective Soft Pouch
Neck Strap
Wrist Strap
User Manual
The Pixfra Ranger R435 is a versatile and powerful thermal imaging monocular designed to meet the needs of various users. Its advanced features, rugged build, and high-resolution imaging make it an excellent choice for those seeking reliable performance in any situation.”
