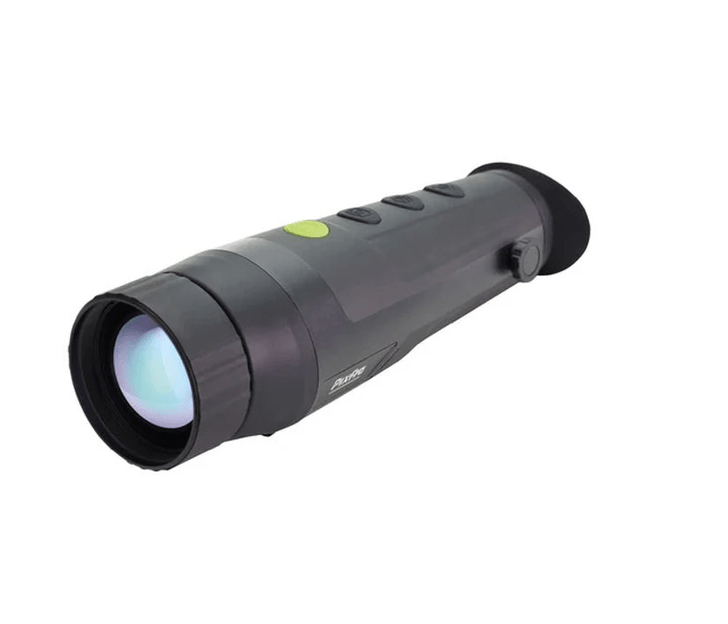

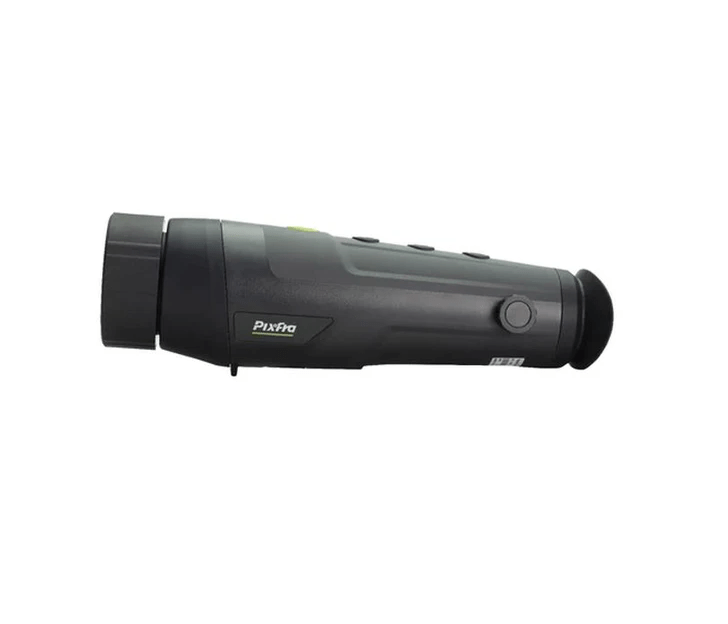

Pixfra Ranger R650 Thermal Imaging Monocular
Overview
The Pixfra Ranger R650 Thermal Imaging Monocular is a top-of-the-line thermal imager designed for exceptional performance in various conditions. With its high resolution, powerful lens, and advanced features, it is ideal for professional and recreational use, including wildlife observation, security surveillance, and outdoor adventures.
Key Features
High-Resolution Thermal Sensor: The Ranger R650 is equipped with a 640×512 resolution and a 12µm pixel pitch thermal sensor, offering detailed and clear thermal images with a sensitivity of <30mK NETD.
Powerful Lens: The 50mm f/1.0 objective lens provides a wide detection range of up to 2600 meters, ensuring long-distance observation capabilities.
High-Quality Display: Features a 1440×1080, 0.41-inch OLED display, delivering crisp and smooth thermal imagery.
Digital Zoom: Offers 1x, 2x, 4x, and 8x digital zoom for detailed inspection of distant objects.
Multiple Color Palettes: Includes six selectable color palettes (Black Hot, White Hot, Iron Red, Sepia, Green Hot, Alarm) to suit various viewing conditions.
Built-In Wi-Fi: Enables seamless connectivity with the Pixfra app for live streaming and group observations, supporting multiple smart devices simultaneously.
Video and Image Recording: Supports video recording and still image capture with built-in storage for MicroSD cards up to 256GB.
Stadiametric Rangefinder: Provides accurate distance measurements between the user and observed objects, enhancing situational awareness.
Laser Pointer: Integrated laser pointer for pinpointing specific objects, automatically disabling after 10 seconds to protect users’ eyes.
Long Battery Life: Provides up to 6.5 hours of continuous use on a single charge, with a rechargeable lithium battery and USB Type-C port for easy charging.
Rugged and Weatherproof: IP67 rated for dust and water resistance, operational in temperatures from -30°C to +50°C, ensuring durability in harsh conditions.
Specifications
Resolution: 640×512
Lens Size: 50mm f/1.0
Field of View: 8.7° x 7.0°
Detection Range: Up to 2600 meters
Display: 1440×1080, 0.41-inch OLED
Digital Zoom: 1x, 2x, 4x, 8x
Battery Life: Up to 6.5 hours
Operating Temperature: -30°C to +50°C
Waterproof Rating: IP67
Dimensions: 217 mm x 64.7 mm x 69.6 mm
Weight: Less than 495 g
Applications
Wildlife Observation: Ideal for spotting and studying wildlife in complete darkness or through dense foliage.
Security and Surveillance: Enhances situational awareness for security operations, allowing for effective monitoring in low visibility conditions.
Outdoor Adventures: Perfect for hikers, campers, and explorers who need reliable thermal imaging to navigate and observe their surroundings at night.
In the Box
Pixfra Ranger R650 Thermal Imaging Monocular
USB Type-C Charging Cable
Protective Soft Pouch
Neck Strap
Wrist Strap
User Manual
The Pixfra Ranger R650 is a versatile and powerful thermal imaging monocular designed to meet the needs of various users. Its advanced features, rugged build, and high-resolution imaging make it an excellent choice for those seeking reliable performance in any situation.”
