DESCRIPTION

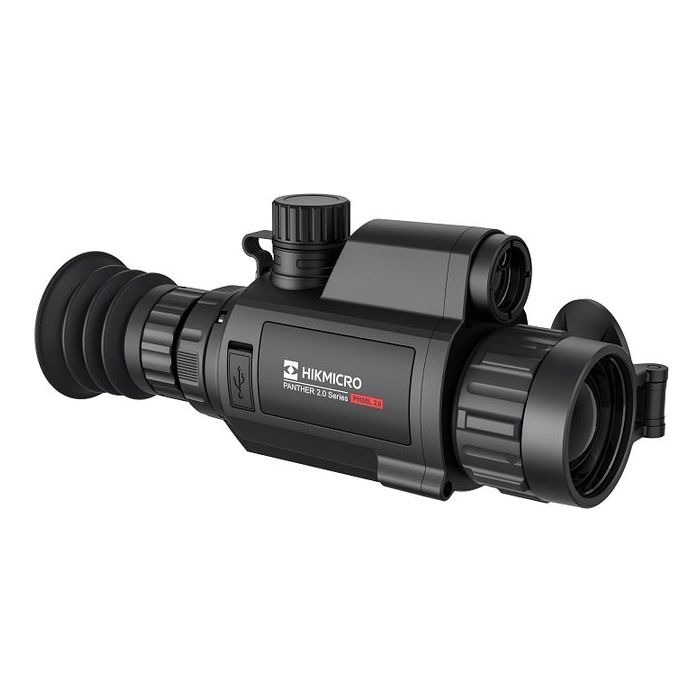

Introducing the Hikmicro Panther PQ35L 2.0 Thermal Image Scope – 35mm, 640×512. With a 640×512 resolution sensor and sub 20mK NETD sensitivity, the Panther PQ35L 2.0 delivers unparalleled image quality, even in the most challenging conditions. Paired with a high-performance 35mm focal length lens system and a 1024×768 OLED display, this thermal scope provides a clear view of targets and surroundings, with customizable thermal colour palettes for enhanced visibility.

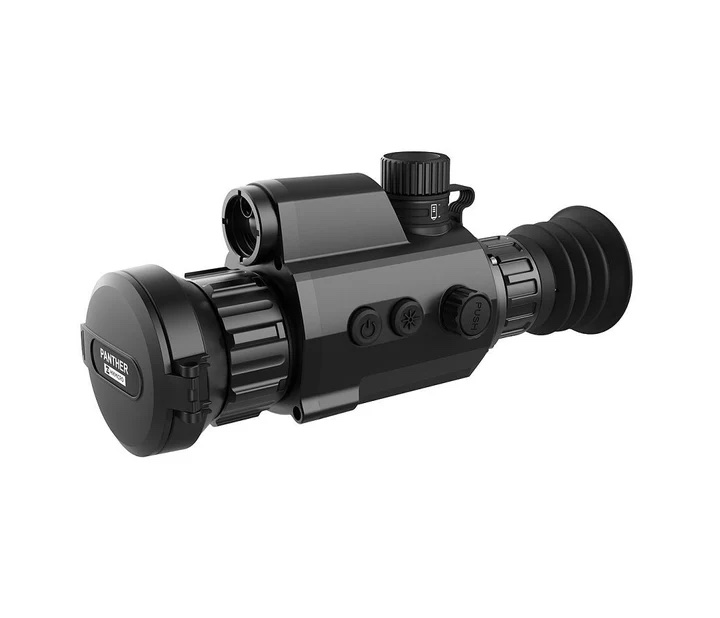

The Panther PQ35L 2.0 features a built-in 600m laser range finder and a ballistics calculator, offering improved accuracy and precision for shooting applications. Its ergonomic design includes a robust focus ring and an innovative jog dial for easy control in low-light environments. With only two buttons, operation is intuitive and straightforward.
Equipped with Hikmicro’s latest software, the Panther PQ35L 2.0 includes an updated zeroing system for quick setup with rifles, along with onboard recording capabilities and compatibility with the Hikmicro app for remote control and streaming. The scope’s robust chassis, Picatinny rail compatibility, and IP67 waterproof rating ensure durability and reliability in any weather conditions.
Powered by a removable and rechargeable 18650 battery, the Panther PQ35L 2.0 offers long-lasting performance, with replacement batteries readily available for extended hunting trips. With a compact form factor and lightweight design, it is suitable for use in various outdoor scenarios, with a wide operating temperature range from -30C to +55C.
FEATURES
High shock resistance up to 1000g/0.4ms
Up to 2600m detection range
1024 x 768 resolution 0.39-inch OLED display
Observation distance up to 1800 m
Recoil-activation and audio recording
Supports external power supply
Supports distance measurement and hotspot function
Replaceable and rechargeable battery
SPECIFICATIONS
Thermal Module
Image Sensor Uncooled Focal Plane Arrays
Resolution 640×512
Frame Rate 50 Hz
Pixel Interval 12 m
Netd Less than 20 mK (25C, F 1.0)
Lens (Focal Length) 35 mm
Detection Range 1,800 m
Focusing Distance 2 m.
Aperture F1.0
Magnification 1.82 x
Field Of View (H X V), Degrees/M @100 M 12.52 x 10.03/21.94 m x 17.55 m
Image Display
Display 1,024 x 768, 0.39-inch, OLED
Palettes Black Hot, White Hot, Red Hot, Fusion
Ffc (Flat Field Correction) Mode Auto, Manual, External Correction
Exit Pupil 6 mm.
Eye Relief 45 mm
Diopter (Range) -5 D to 3 D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
System
Record Video On-board Video Recording
Capture Snapshot Yes
Digital Zoom Continuous digital zooming, 1x to 8x
Standby Mode Yes
Storage Built-in EMMC (16 GB)
Pip Yes
Dpc Yes
Hotspot Yes
Hot Track Yes
Distance Measurement Yes
Recoil-Activation Recording Yes
Audio Recording Yes
Recoil 1,000 g/0.4 ms
Power Supply
Battery Type Replaceable and Rechargeable Li-ion Battery
Battery Operating Time Roughly 5 h (25C, with hotspot off)
Type-C Power Supply 5 V DC, 2 A. Supports External Power Supply
General
Protection Level IP67
Dimension 214.64 mm x 66.97 mm x 87.10 mm
Weight 518 g without Battery
Working Temperature -30C to +55C
Laser Range finder
Safety Class For Laser Class 1
Wavelength 905 nm
Measuring Range 600 m
Measurement Accuracy +-1 m
Measuring Range 10 m
