DESCRIPTION

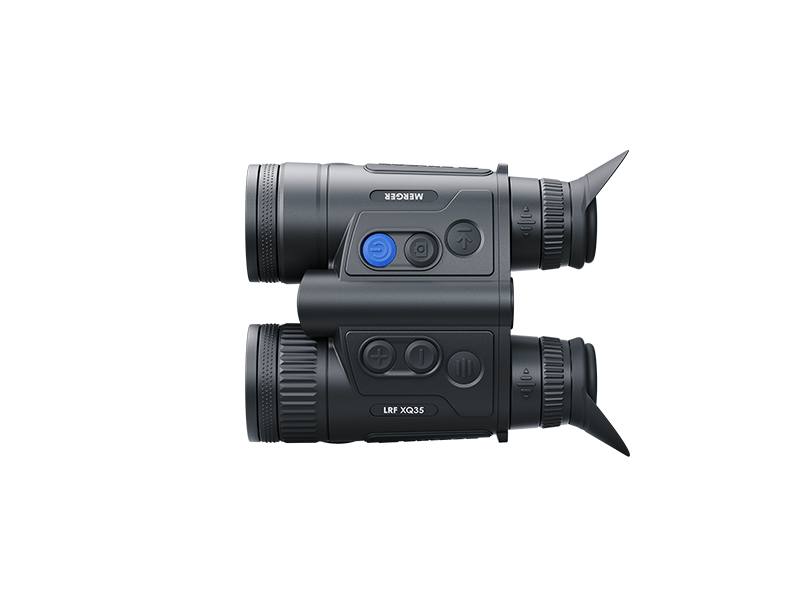

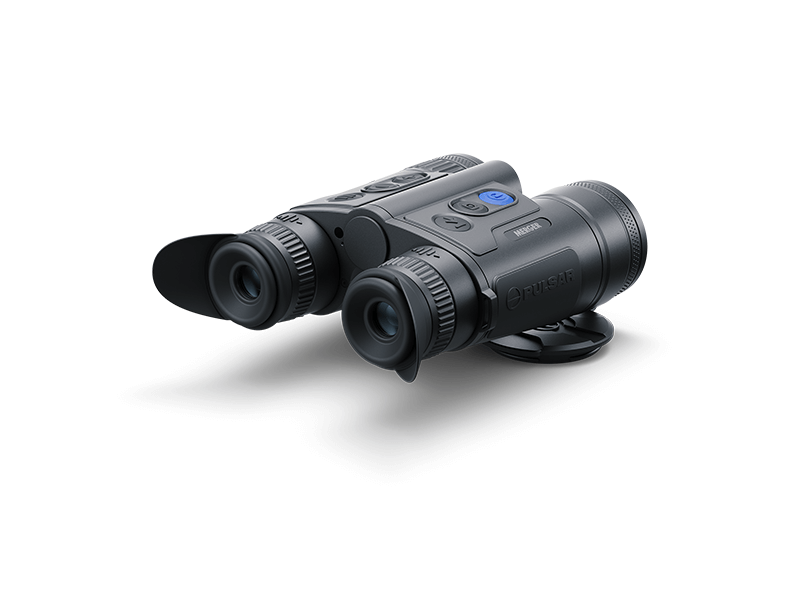

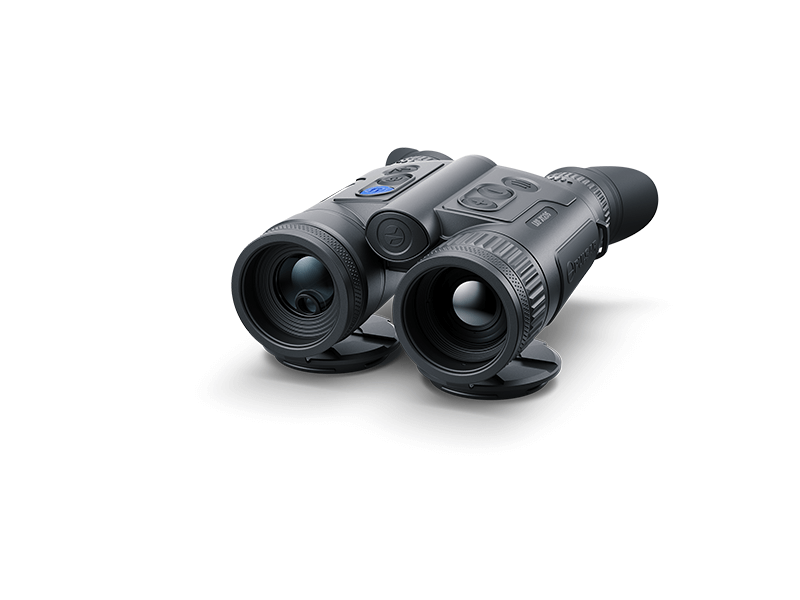

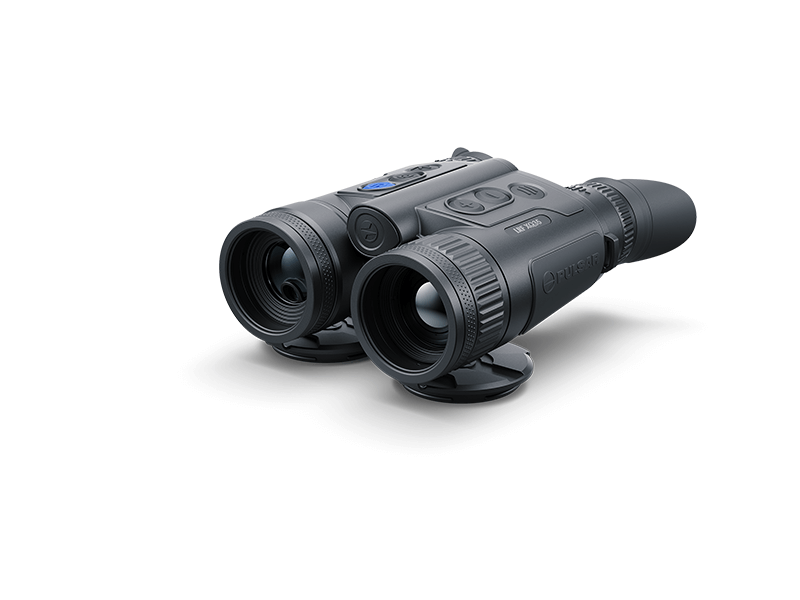

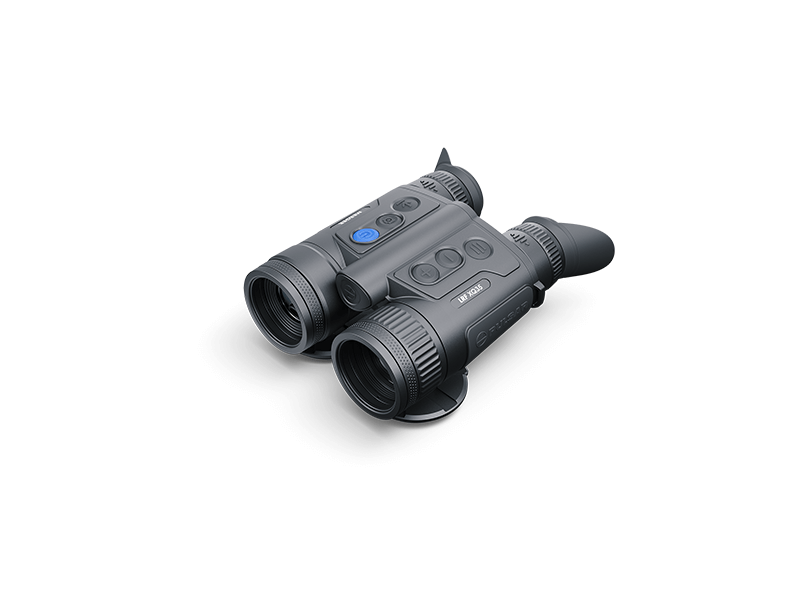

Introducing the Pulsar Merger LRF XQ35 Thermal Imaging Binoculars – 1350m, Black. Designed for precision and reliability, offering a 1350m detection range and a rugged magnesium alloy housing. The binoculars feature a proximity sensor, combined dual battery sensor, and a high-resolution sensor with a NETD of <25mK, providing clear and accurate thermal imaging. With a 3-12 magnification range and a 1000m laser range finder, these binoculars are perfect for detecting and tracking targets in various environments.
The Merger LRF XQ35 features advanced optics with an F35/1.0 objective lens, 15mm eye relief, and an interpupillary distance adjustment of 62-74mm. The binoculars also have a high-contrast AMOLED HD display with a resolution of 1024×768 pixels, providing crisp and clear visuals. The built-in video recorder allows users to capture footage in high-definition, with 16GB of internal memory and the ability to transfer files via Wi-Fi.
The Pulsar Merger LRF XQ35 Thermal Imaging Binoculars are designed to withstand harsh environments, with an IP7 waterproof rating and an operating temperature range of -25C to 50C. The binoculars weigh approximately 0.83kg (with batteries included) and measure 181x133x68mm in size. With their advanced features and rugged design, the Merger LRF XQ35 is an ideal choice for professionals and enthusiasts alike who require high-performance thermal imaging capabilities.
FEATURES
- 1350m detection range
- Rugged magnesium alloy housing
- Proximity sensor
- Combined dual battery sensor
- 384×288 pix.
- Netd <25 mk
- 3-12 magnification
- 1000m lrf
SPECIFICATIONS
| Main | |
| Sensor | 384×288 pix. @ 17 m (NETD <25 mK) |
| Objective Lens | F35 / 1.0 |
| Magnification, X | 3 12 (x4 zoom) |
| Field Of View (Hxv), Degrees / M@100M | 10.78 / 18.7×14 |
| Detection Range, M | 1350 |
| Sensor | |
| Type | uncooled |
| Resolution, Pixels | 384×288 |
| Pixel Pitch, M | 17 |
| Netd, Mk | <25 |
| Frame Rate, Hz | 50 |
| Optics | |
| Objective Lens | F35 / 1.0 |
| Magnification, X | 3 12 |
| Field Of View (Hxv), Degrees / M @ 100 M | 10.78 / 18.7×14 |
| Interpupillary Distance Adjustment, Mm | 62 74 |
| Eye Relief, Mm | 15 |
| Display | |
| Type | AMOLED HD |
| Resolution, Pixels | 1024×768 |
| Range Performance | |
| Detection Range, M | 1350 |
| Laser Range finder | |
| Safety Class For Laser Equipment According To Iec 60825-1:2014 | 1 |
| Wavelength, Nm | 905 |
| Max. Measuring Range, M | 1000 |
| Measurement Accuracy, M | +- 1 |
| Video Recorder | |
| Video / Photo Resolution, Pixel | 1024×768 |
| Video / Photo Format | .mp4 / .jpg |
| Built-In Memory, GB | 16 |
| Wi-Fi | |
| Wireless Protocol | Wi-Fi |
| Wireless Standard | IEEE 802.11 b/g/n/ac (WPA) |
| Frequency, GHz | 2.4 / 5 |
| Environmental Characteristics | |
| Degree Of Protection, IP Code (Iec60529) | IP7 (waterproof) |
| Operating Temperature Range, | -25 +50 |
| Connections And Compatibilities | |
| Mount, Type | 1/4″ socket |
| Supported Application | Stream Vision 2 |
| Power Supply | |
| Output Voltage, V | 3.7 |
| Battery Type | Dual Li-Ion Power System: 3.2 Ah Changeable Battery (External) / 4.0 Ah Battery (Internal) |
| Capacity, Mah | 3200 (external) + 4000 (internal) |
| Operating Time On Battery Pack (At T22C), H | 11 |
| External Power Supply, V | 5V, 9V (USB Type-C Power Delivery) |
| Weight & Size | |
| Body Material | Magnesium alloy |
| Dimensions, Mm | 181x133x68 |
| Weight, Kg | 0.83 (batteries included) |
